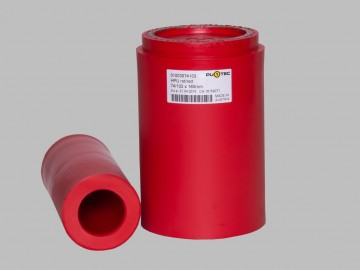

HPU RED

PROPERTIES CONDITION STANDARD ​UNIT
COLOR       RED ***
HARDNESS 73.4°F ​ISO 868 SHORE A 96 ± 2
HARDNESS 73.4°F ISO 868 SHORE D 50 ± 3
MODULUS 100% 73.4°F DIN 53 504 PSI ≥ 1740
MODULUS 300% 73.4°F DIN 53 504 PSI ≥ 3190
TENSILE STRENGTH 73.4°F ​DIN 53 504 PSI ≥ 6525
ELONGATION AT BREAK

73.4°F

 DIN 53 504 % ≥ 450
TEAR STRENGTH 73.4°F DIN ISO 34-1 lbf/inch ≥ 450
SPEC. GRAVITY 73.4°F ISO 1183 g/cm³ 1,13
ABRASION 73.4°F DIN 53 504 mm³ 20
COMPRESSION SET * ISO 815 % ≤ 30
COMPRESSION SET ** ISO 815 % ≤ 35
MINIMUM SERVICE TEMPERATURE     °F -35
MAXIMUM SERVICE TEMPERATURE     °F 230



​* 24h 158°F 25% def.

** 24h 212°F 25% def.



CHEMICAL PROPERTIES:

Copolymer, based on aromatic isocyanate and diols

Resistant to oil, water, ozone, microbes

Not resistant conc. acids, conc. lyes, conc. alcohols and aromatic solvents

Foodstuff approval:            in Accordance with FDA CFR 21-177.2600

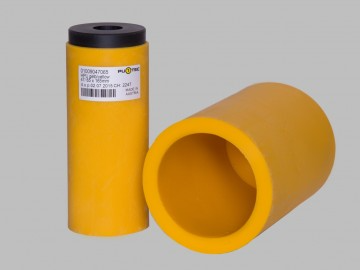

HPU YELLOW 55D SHORE

PROPERTIES ​CONDITION STANDARD UNIT
COLOR       YELLOW
HARDNESS 73.4°F ISO 868 SHORE A
HARDNESS 73.4°F ​ISO 868 SHORE D 55 ± 3
MODULUS 100% 73.4°F DIN 53 504 PSI ≥ 2900
MODULUS 300% 73.4°F DIN 53 504 PSI ≥ 5075
TENSILE STREGNTH 73.4°F DIN 53 504 PSI ≥ 6530
ELONGATION AT BREAK 73.4°F DIN 53 504 % ≥ 340
TEAR STRENGTH 73.4°F DIN ISO 34-1 lbf/inch ≥ 630
SPEC. GRAVITY 73.4°F ISO 1183 ​g/cm³ 1,21
ABRASION 73.4°F DIN 53 516 ​mm³ 25
COMPRESSION SET * ISO 815 % ≤ 30
COMPRESSION SET ** ISO 815 % ≤ 35
MINIMUM SERVICE TEMPERATURE     °F -4
MAXIMUM SERVICE TEMPERATURE     °F 240
​* 24h 158°F 25% def.

** 24h 212°F 25% def.

CHEMICAL PROPERTIES:

Copolymer, based on aromatic isocyanate and diols

Resistant to oil, petrol, hot water, hot air, ozone, synthetic and native esters

Not resistant to conc. acids, conc. lyes, conc. alcohols and aromatic solvents

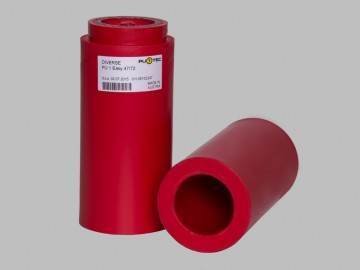

PUEASY

PROPERTIES CONDITION STANDARD UNIT ​
COLOR       RED
HARDNESS 73.4°F ISO 868 SHORE A 94 ± 2
HARDNESS 73.4°F ISO 868 SHORE D 50 ± 3
MODULUS 100% 73.4°F DIN 53 504 PSI ​≥ 1450
MOSULUS 300% 73.4°F DIN 53 504 PSI ≥ 3480
TENSILE STRENGTH 73.4°F DIN 53 504 PSI ≥ 7250
ELONGATION AT BREAK 73.4°F DIN 53 504 % ≥ 450
TEAR STRENGTH 73.4°F DIN ISO 34-1 lbf/inch ≥ 457
SPECIFIC GRAVITY 73.4°F ISO 1183 g/cm³ 1,18
ABRASION   DIN 53 516 mm³ 17
COMPRESSION SET * ISO 815 % ≤ 30
COMPRESSION SET ** ISO 815 % ≤ 35
MINIMUM SERVICE TEMPERATURE     °F -40
MAXIMUM SERVICE TEMPERATURE     °F 230
* 24h 158°F 25% def.

** 24h 212°f 25% def.

SL-PU DARK-GREY

PROPERTIES CONDITION STANDARD ​UNIT
COLOR       GREY
HARDNESS 73.4°F ISO 868 SHORE A 96 ± 2
HARDNESS 73.4°F ISO 868 SHORE D 48 ± 3
MODULUS 100% 73.4°F DIN 53 504 PSI ≥ 1740
MODULUS 300% 73.4°F

DIN 53 504

 PSI ≥ 3190
TENSILE STRENGTH 73.4°F DIN 53 504 PSI ≥ 6525
ELONGATION AT BREAK 73.4°F DIN 53 504 % ≥ 350
TEAR STRENGTH 73.4°F DIN ISO 34-1 lbf/inch ≥ 450
SPEC. GRAVITY 73.4°F ISO 1183 g/cm³ 1,19
ABRASION 73.4°F DIN 53 516 mm³ 15
COMPRESSION SET * ISO 815 % ≤ 30
COMPRESSION ** ISO 815 % ≤ 35
MINIMUM SERVICE TEMPERATURE     °F -4
MAXIMUM SERVICE TEMPERATURE     °F 230
* 24h 158°F 25% def.

** 24h 212°F 25% def.

CHEMICAL PROPERTIES:

Copolymer, based on aromatic isocyanate and diols and internal lubricants

Resistant to oil, hot water, hot air, ozone

Not resistant to conc. acids, conc. lyes, conc. alcohols and aromatic solvents

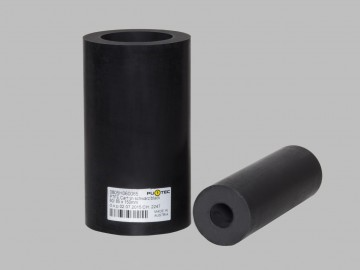

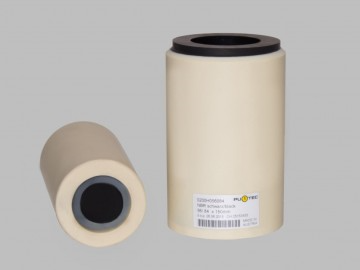

NBR BLACK (NITRIL BUTADIENE RUBBER)

PROPERTIES CONDITION STANDARD ​UNIT
COLOR       SWARCHZ
HARDNESS 73.4°F ISO 868 SHORE A ​85 ± 5
MODULUS 100% 73.4°F DIN 53 504 PSI ≥ 1595
TENSILE STRENGTH 73.4°F DIN 53 504 PSI ≥ 2465
ELONGATION AT BREAK 73.4°F DIN 53 504 % ≥ 150
TEAR STRENGTH 73.4°F

DIN ISO 34-1

 lbf/inch ≥ 102
SPEC. GRAVITY 73.4°F ISO 1183 g/cm³ 1,32
REBOUND ELASTICITY 73.4°F DIN 53 512 % 20
ABRASION 73.4°F DIN 53 516 mm³ 100
COMPRESSION SET * ISO 815 % ≤ 5
COMPRESSION SET ** ISO 815 % ≤ 6
COMPRESSION SET *** ISO 815 %
MINIMUM SERVICE TEMPERATURE     °F -22
MAXIMUM SERVICE TEMPERATURE     °F 230
TEMP. MAX WATER/STEAM     °F
TEMP. MAX HOT AIR     °F
* 24h 158°F 25% def.

** 24h 212°F 25% def.

*** 24h 302°F 25% def.

CHEMICAL PROPERTIES:

copolymer, based on butadiene and acrylonitrile

Resistant to: oil, petrol and crude oil

Not resistant to: conc. acides, conc. lyes and polar solvents

Foodstuff approval:

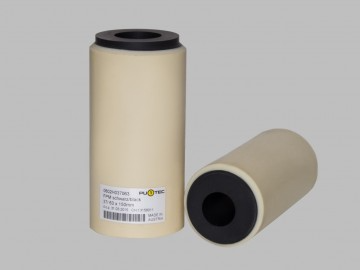

VITON FPM BLACK

PROPERTIES CONDITION STANDARD UNIT ​
COLOR       BLACK
HARDNESS 73.4°F ISO 868 SHORE A 85 ± 5
MODULUS 100% 73.4°F DIN 53 504 PSI ≥ 870
TENSILE STRENGTH 73.4°F DIN 53 504 PSI ≥ 1160
ELONGATION AT BREAK 73.4°F DIN 53 504 % ≥ 150
TEAR STRENGTH 73.4°F DIN ISO 34-1 lbf/inch ≥
SPEC. GRAVITY 73.4°F ISO 1183 g/cm³ 2,44
REBOUND ELASTICITY 73.4°F DIN 53 512 % 7
ABRASION 73.4°F DIN 53 516 mm³
COMPRESSION SET * ISO 815 % ≤ 7
COMPRESSION SET ** ISO 815 % ≤ 4
COMPRESSION SET *** ISO 815 % ≤ 14
MINIMUM SERVICE TEMPERATURE     °F -4
MAXIMUM SERVICE TEMPERATURE     °F 428
TEMP. MAX WATER/STEAM     °F
TEMP. MAX HOT AIR     °F 572 SHORT
* 24h 158°F 25% def.

** 24h 212°F 25% def.

*** 24h 302°F 25% def.

CHEMICAL PROPERTIES:

Copolymer, based on fluoro

Resistant to: fats, crude oil, mineral oil, gasoline, alphatic and aromatic hydrocarbons

Not resistant to: glycols, ketones, most fluid containing amines and water

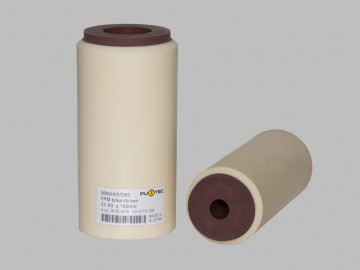

VITON FPM BROWN

PROPERTIES ​CONDITION STANDARD ​UNIT
COLOR       BROWN
HARDNESS 73.4°F ISO 868 SHORE A 85 ± 5
MODULUS 100% 73.4°F DIN 53 504 PSI ≥ 870
TENSILE STRENGTH 73.4°F DIN 53 504 PSI ≥ 1305
ELONGATION AT BREAK 73.4°F DIN 53 504 % ≥ 200
TEAR STRENGTH 73.4°F DIN ISO 34-1 lbf/inch ≥ 114
SPEC. GRAVITY 73.4°F ISO 1183 g/cm³ 2,53
REBOUND ELASTICITY 73.4°F DIN 53 512 % 7
ABRASION 73.4°F DIN 53 516 mm³

175
COMPRESSION SET * ISO 815 % ≤ 17
COMPRESSION SET ** ISO 815 % ≤ 10
COMPRESSION SET *** ISO 815 % ≤ 15
MINIMUM SERVICE TEMPERATURE     °F -4
MAXIMUM SERVICE TEMPERATURE     °F 428
TEMP. MAX WATER/STEAM     °F
TEMP. MAX HOT AIR     °F 572 SHORT
* 24h 158°F 25% def.

** 24h 212°F 25% def.

*** 24h 302°F 25% def.

CHEMICAL PROPERTIES:

Copolymer, based on fluoro

Resistant to: crude oil, mineral oil, gasolie, alphatic and aromatic hydrocarbons

Not resistant to: flycols, ketone, most fluids containing amines, water

H-NBR GREEN (HYDRATED NITRIL BUTADIENE RUBBER)

PROPERTIES CONDITION STANDARD UNIT
COLOR       GREEN
HARDNESS 73.4°F ISO 868 SHORE A 85 ± 5
MODULUS 100% 73.4°F DIN 53 504 PSI ≥ 1450
TENSILE STRENGTH 73.4°F DIN 53 504 PSI ≥ 2900
ELONGATION AT BREAK 73.4°F DIN 53 504 % ≥ 190
TEAR STRENGTH 73.4°F DIN ISO 34-1 lbf/inch ≥ 85
SPEC. GRAVITY 73.4°F ISO 1183 g/cm³ 1,32
REBOUND ELASTICITY 73.4°F DIN 53 512 %
ABRASION 73.4°F DIN 53 516 mm³ 135
COMPRESSION SET * ISO 815 % ≤ 12
COMPRESSION SET ** ISO 815 % ≤ 14
COMPRESSIN SET *** ISO 815 % ≤ 22
MINIMUM SERVICE TEMPERATURE     °F -4
MAXIMUM SERVICE TEMPERATURE     °F 302
TEMP. MAX WATER/STEAM     °F 248
TEMP. MAX HOT AIR     °F 356
* 24h 158°F 25% def.

** 24h 212°F 25% def.

*** 24h 302°F 25% def.

CHEMICAL PROPERTIES:

Copolymer, based on butadiene and acrylonitrile

Resistant to: oil, petrol, hot water, hot air, ozone and crude oil

Not resistant to: conc. Acides, conc. lyes and polar solvents

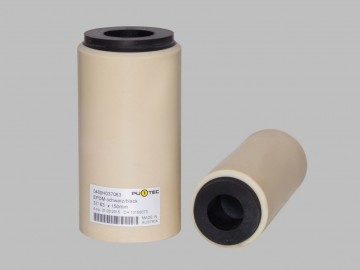

EPDM BLACK (ETHYLEN PROPYLENDIEN RUBBER)

PROPERTIES CONDITION STANDARD ​UNIT
COLOR       SCHWARZ
HARDNESS 73.4°F ISO 868 SHORE A 85 ± 5
MODULUS 100% 73.4°F DIN 53 504 PSI
TENSILE STRENGTH 73.4°F DIN 53 504 PSI ≥ 1740
ELONGATION AT BREAK 73.4°F DIN 53 504 % ≥ 80
TEAR STRENGTH 73.4°F DIN ISO 34-1 lbf/inch 55
SPEC. GRAVITY 73.4°F ISO 1183 g/cm³ 1,22
REBOUND ELASTICITY 73.4°F DIN 53 512 % 37
ABRASION 73.4°F DIN 53 516 mm³ 140
COMPRESSION SET * ISO 815 % ≤ 7
COMPRESSION SET ** ISO 815 % ≤ 7
COMPRESSION SET *** ISO 815 %
MINIMUM SERVICE TEMPERATURE     °F -49
MAXIMUM SERVICE TEMPERATURE     °F 266
TEMP. MAX WATER/STEAM     °F 266
TEMP. MAX HOT AIR     °F 356
* 24h 158°F 25% def.

** 24h 212°F 25% def.

*** 24h 302°F 25% def.

CHEMICAL PROPERTIES:

Copolymer, based on ethylene, propylene and diene

Resistant to: (hot) water, acids, bases, ketone, brake fluid based on polyglycols and lyes

Not resistant to: aliphatic, aromatic and chlorinated hrydrocarbons, greases and fuels

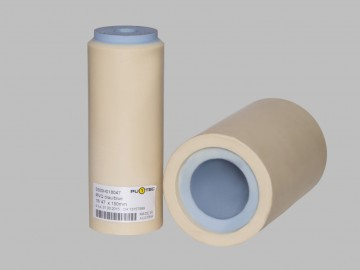

MVQ BLUE (METHYL SILICONE RUBBER)

PROPERTIES CONDITION STANDARD ​UNIT
COLOR       BLUE
HARDNESS 73.4°F ISO 868 SHORE A 85 ± 5
MODULUS 100% 73.4°F DIN 53 504 PSI ≥ 405
TENSILE STRENGTH 73.4°F DIN 53 504 PSI ≥ 710
ELONGATION AT BREAK 73.4°F DIN 53 504 % 120
TEAR STRENGTH 73.4°F DIN ISO 34-1 lbf/inch ≥ 85
SPEC. GRAVITY 73.4°F ISO 1183 g/cm³ 1,58
REBOUND ELASTICITY 73.4°F DIN 53 512 % 35
ABRASION 73.4° DIN 53 516 mm³
COMPRESSION SET * ISO 815 % ≤ 8
COMPRESSION SET ** ISO 815 % ≤ 9
COMPRESSION SET *** ISO 815 %
MINIMUM SERVICE TEMPERATURE     °F -76
MAXIMUM SERVICE TEMPERATURE     °F 392
TEMP. MAX WATER/STEAM     °F
TEMP. MAX HOT AIR     °F 572 SHORT
* 24h 158°F 25% def.

** 24h 212°F 25% def.

*** 24h 302°F 25% def.

CHEMICAL PROPERTIES:

Copolymer, based on methyl, vinyl and silicone

Resistant to: hot air, ozone, hot water and acetic acid

Not resistant to: aliphatic and aromatic hydrocarbon and esters

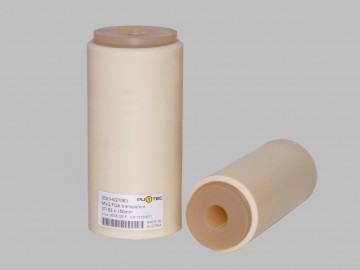

MVQ TRANSPARENT FDA

PROPERTIES CONDITION STANDARD ​UNIT
COLOR       TRANSLUCENT
HARDNESS 73.4°F ISO 868 SHORE A

85 ± 5
MODULUS 100% 73.4°F DIN 53 504 PSI ≥ 580
TENSILE STRENGTH 73.4°F DIN 53 504 PSI ≥ 1305
ELONGATION AT BREAK 73.4°F DIN 53 504 % ≥ 300
TEAR STRENGTH 73.4°F DIN ISO 34-1 lbf/inch ≥ 45
SPEC. GRAVITY 73.4°F ISO 1183 g/cm³ 1,18
REBOUND ELASTICITY 73.4°F DIN 53 512 % 38
ABRASION 73.4°F DIN 53 516 mm³
COMPRESSION SET * ISO 815 % ≤ 4
COMPRESSION SET ** ISO 815 % ≤ 7
COMPRESSION SET *** ISO 815 % ≤ 20
MINIMUM SERVICE TEMPERATURE     °F -76
MAXIMUM SERVICE TEMPERATURE     °F 392
TEMP. MAX WATER/STEAM     °F 230
TEMP. MAX HOT AIR     °F 572 SHORT
* 24h 158°F 25% def.

** 24h 212°F 25% def.

*** 24h 302°F 25% def.

CHEMICAL PROPERTIES:

Copolymer, based on methyl, vinyl and silicone

Resistant to: hot air, ozone, hot water and acedic acid

Not resistant to: aliphatic and aromatic hydrocarbons and esters

Foodstuff approval:
FDA compliant in it's active substances to § 177.2600, CFR 21

"Rubber aticles Intended for repeated use"

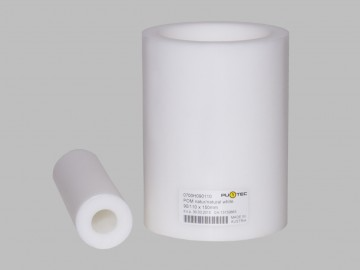

POM WHITE (POLYOXYMETHALYN)

PROPERTIES CONDITION STANDARD UNIT
COLOR       WHITE
DENSITY / SPECIFIC GRAVITY 73.4°F DIN 53479 g/cm³ 1,41
HARDNESS 73.4°F ISO 868 SHORE D 85 ± 3
BAIL INDENTATION HARDNESS 73.4°F DIN 53456 H135/30 PSI 23000
TENSILE STRENGTH 73.4°F ASTM D 4745-79 PSI 10100
ELONGATION AT BREAK 73.4°F ASTM D 4745-79 % 40
COMPRESSIVE STRENGTH 73.4°F DIN 53455 PSI 12800
THERMAL CONDUCTIVITY   DIN 52612

    J * 10³_

m * h * K

 0,25
COEFFICIENT OF THERMAL EXPANSION 77°F - 392°F   K-1 * 10-5 11
COEFFICIENT OF FRICTION * 73.4°F   µ 0,28
MINIMUM SERVICE TEMPERATURE     °F -49
MAXIMUM SERVICE TEMPERATURE     °F 212
YOUNG'S MODULUS 73.4°F DIN 53457 PSI 435000
* Coefficient of friction dry dynamic steel 16MnCrS v=0, 6m/s; p=0,05 MPa; t=5h

CHEMICAL PROPERTIES:

Copolymer, based on methylenoxide

Resistant to: fuels, water, lyes, lubricants, alcohols and solvents

Not resistant to strong mineral acids oxidising chemicals, ethers; limited resistant to UV radiation and long term hot water

Foodstuff approval:               FDA approval

PA NYLON (POLYAMIDE)

PROPERTIES CONDITION STANDARD ​UNIT
COLOR       NATURE
DENSITY / SPECIFIC GRAVITY 73.4°F DIN 53479 g/cm³ 1,13
HARDNESS 73.4°F ISO 868 SHORE D 85 ± 3
BALL INDETATION HARDNESS 73.4°F DIN 53456 H135/30 PSI 22200
TENSILE STRENGTH 73.4°F ASTM D 4745-79 PSI 11600
ELONGATION AT BREAK 73.°F ASTM D 4745-79 % 40
COMPRESSIVE STRENGTH 73.4°F DIN 53455 PSI 16000
THERMAL CONDUCTIVITY   DIN 52612

   J*   10³  _

m *  h  *  K

 0,29
COEFFICIENT OF THERMAL EXPANSION 77°F - 392°F   K-1 * 10-5 8
COEFFICIENT OF FRICTION * 73.4°F   µ 0,4
MINIMUM SERVICE TEMPERATURE     °F -40
MAXIMUM SERVICE TEMPERATURE     °F 230
YOUNG'S MODULUS 73.4°F DIN 53457 PSI 435000
​* Coefficient of friction dry dynamicl steal 16 MnCr5 v=0,6m/s; p=0,05 MPa; t=5h

CHEMICAL PROPERTIES:

Homopolymere, based on caprolactam

Resistant to: lubricants, fueks, solvents, natural oil and greases, water, ester and ketones

Not resistant to: strong acids and lyes

Foodstuff approval:                      -

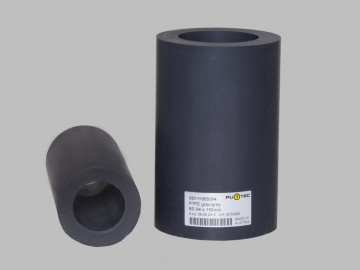

PTFE I GREY (GLASS MOLYBDENUM DISULFIDE)

PROPERTIES CONDITION STANDARD UNIT
COLOR       ​GREY
DENSITY / SPECIFIC GRAVITY 73.4°F DIN 53479 g/cm³ 2,26
HARDNESS 73.4°F ISO 868 SHORE D 58 ± 3
BALL INDENTATION HARDNESS 73.4°F DIN 53456 H135/30 PSI

3915 ± 725
TENSILE STRENGTH 73.4°F ASTM D 4745-79 PSI ≥ 2320
ELONGATION AT BREAK 73.4°F ASTM D 4745-79 % ≥ 185
COMPRESSIVE STRENGTH 73.4°F DIN 53455 PSI ≥ 1160
THERMAL CONDUCTIVITY   DIN 52612

   J*   10³  _

m *  h  *  K

 1,1
COEFFICIENT OF THERMAL EXPANSION 77°F - 392°F   K-1 * 10-5 13
MINIMUM SERVICE TEMPERATURE     °F -328
MAXIMUM SERVICE TEMPERATURE     °F 500
YOUNG'S MODULUS 73.4°F DIN 53457 PSI 191500
* Coefficient of friction dry dynamic steel 16MnCr5 v=0,6m/s; p=0,05 MPa; t=5h

CHEMICAL PROPERTIES:

Filled PTFE

Resistant to almost all chemicals

Not resistant to: halogenides, elemental fluorine, CF3, molten alkali metals

Foodstuff applications:               -

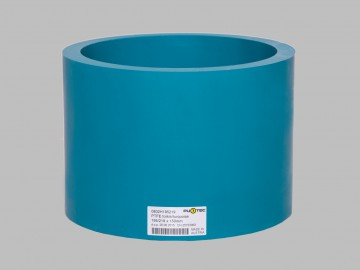

PTFE D05 TURQOUISE

PROPERTIES CONDITION ​STANDARD UNIT
COLOR       BLUE
DENSITY / SPECIFIC GRAVITY 73.4°F ​DIN 53479 g/cm³ 2,17
HARDNESS 73.4°F ISO 868 SHORE D 57 ± 3
BALL INDENTATION HARDNESS 73.4°F DIN 53456 H 135/30 PSI 4060 ± 725
TENSILE STRENGTH 73.4°F ASTM 4745-79 PSI ≥ 4495
ELONGATION AT BREAK 73.4°F ASTM 4745-79 % ≥ 270
COMPRESSIVE STRENGTH 73.4°F DIN 53455 PSI ≥ 580
THERMAL CONDUCTIVITY   DIN 52612

    J * 10 ³_

  m * h * K

 ≥ 0,8
COEFFICIENT OF THERMAL EXPANSION 77°F - 392°F   K-1 * 10-5 ≥ 19
COEFFICIENT OF FRICTION * 73.4°F   µ ≥ 0,08
MINIMUM SERVICE TEMPERATURE     °F -328
MAXIMUM SERVICE TEMPERATURE     °F 500
YOUNG'S MODULUS 73.4°F   PSI ≥ 78500
* Coefficient of friction dry dynamicl steal 16 MnCr5 v=0,6m/s; p=0,05 MPa; t=5h

CHEMICAL PROPERTIES:

Filled PTFE

Resistant to almost all chemicals

Not resistant to halogenides, elemental fluorine, CF3, molten alkali metals

Foodstuff applications               -

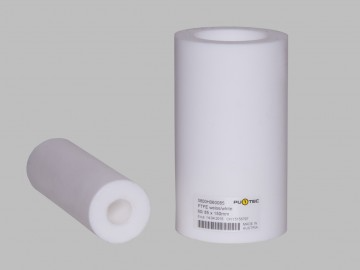

PTFE VIRGIN (WHITE)

PROPERTIES CONDITIONS STANDARD UNIT
COLOR       WHITE
DENSITY / SPECIFIC GRAVITY 73.4°F DIN 53479 g/cm³ 2,15
HARDNESS 73.4°F ISO 868 SHORE D 55 ± 3
BALL INDENTATION HARDNESS 73.4°F DIN 43456 H 135/30 PSI 3335 ± 725
TENSILE STRENGTH 73.4°F ASTM D 4745-79 PSI ≥ 3916
ELONGATION AT BREAK 73.4°F ASTM D 4745-79 % ≥ 250
COMPRESSIVE STRENGTH 73.4°F DIN 53455 PSI ≥ 580
THERMAL CONDUCTIVITY   DIN 52612

    J * 10 ³_

  m * h * K

 0,8
COEFFICIENT OF THERMAL EXPANSION 77°F - 392°F   K-1 * 10-5 19
COEFFICIENT OF FRICTION * 73.4°F   µ 0,08
MINIMUM SERVICE TEMPERATURE     °F -328
MAXIMUM SERVICE TEMPERATURE     °F 500
YOUNG'S MODULUS 73.4°F   PSI 78500
​* Coefficient of friction dry dynamic steel 16MnCr5 v=0,6m/s; p=0,05 MPa; t=5h

CHEMICAL PROPERTIES:

Filled PTFE

Resistant to almost all chemicals

Not resistant to halogenides, elemental fluorine, CF3, molten alkali metal

Foodstuff applications:             FDA approval

PTFE CARBON BLACK

PROPERTIES CONDITION STANDARD UNIT
COLOR       BLACK
DENSITY / SPECIFIC GRAVITY 73.4°F DIN 53479 g/cm³ 2,06
HARDNESS 73.4°F ISO 868 SHORE D 67 ± 3
BALL INDENTATION HARDNESS 73.4°F DIN 53456 H 135/30 PSI 5075 ± 725
TENSILE STRENGTH 73.4°F ASTM D 4745-79 PSI ≥ 1740
ELONGATION AT BREAK 73.4°F ASTM D 4745-79 % ≥ 45
COMPRESSIVE STRENGTH 73.4°F DIN 53455 PSI
THERMAL CONDUCTIVITY   DIN 52612

    J * 10 ³_

  m * h * K

 ≥ 3,5
COEFFICIENT OF THERMAL EXPANSION 77°F - 392°F   K-1 * 10-5 ≥ 10,9
COEFFICIENT OF FRICTION *     µ ≥ 0,17
MINIMUM SERVICE TEMPERATURE     °F -328
MAXIMUM SERVICE TEMPERATURE     °F 500
YOUNG'S MODULUS 73.4°F DIN 53457 ​PSI
* Coefficient of friction dry dynamic steel 16MnCr5 v=0,6m/s; p=0,05 MPa; t=5h

​CHEMICAL PROPERTIES:

Filled PTFE

Resistant to almost all chemicals

Not resistant to halogenides, elemental fluorine, CF3, molten alkali metal

Foodstuff applications:         -

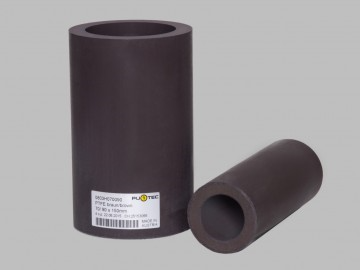

PTFE II (BROWN)

PROPERTIES CONDITION STANDARD ​UNIT
COLOR       BROWN
DENSITY / SPECIFIC GRAVITY 73.4°F DIN 53479 g/cm³ 2,04
HARDNESS 73.4°F ISO 868 SHORE D 56 ± 3
BALL INDENTATION HARDNESS 73.4°F DIN 53456 H 135/30 PSI 4060 ± 725
TENSILE STRENGTH 73.4°F ASTM D 4745-79 PSI ≥ 2900
ELONGATION AT BREAK 73.4°F ASTM D 4745-79 % ≥ 280
COMPRESSIVE STRENGTH 73.4°F DIN 53455 PSI ≥ 1595
THERMAL CONDUCTIVITY   DIN 52612

    J * 10 ³_

  m * h * K

 5,4
COEFFICIENT OF THERMAL EXPANSION 77°F - 392°F   K-1 * 10-5 8,4
COEFFICIENT OF FRICTION * 73.4°F   µ 0,18
MINIMUM SERVICE TEMPERATURE     °F -328
MAXIMUM SERVICE TEMPERATURE     °F 500
YOUNG'S MODULUS 73.4°F DIN 53457 PSI
* Coefficient of friction dry dynamic steel 16MnCr5 v=0,6m/s; p=0,05 MPa; t=5h

CHEMICAL PROPERTIES:

Filled PTFE

Resistant to almost all chemicals

Not resistant to halogenides, elemental fluorine, CF3, molten alkali metal

Foodstuff applications:         -

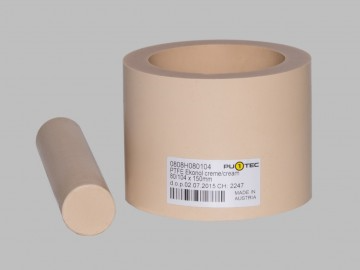

PTFE EKONOL

PROPERTIES CONDITION STANDARD ​UNIT
COLOR       CREAM
DENSITY / SPECIFIC GRAVITY 73.4°F DIN 53479 g/cm³ 2,04
HARDNESS 73.4°F ISO 868 SHORE D 56 ± 3
BALL INDENTATION HARDNESS 73.4°F DIN 53456 H 135/30 PSI 4060 ± 725
TENSILE STRENGTH 73.4°F ASTM D 4745-79 PSI ≥ 2900
ELONGATION AT BREAK 73.4°F ASTM D 4745-79 % ≥ 280
COMPRESSIVE STRENGTH 73.4°F DIN 53455 PSI ≥ 1595
THERMAL CONDUCTIVITY   DIN 52612

    J * 10 ³_

  m * h * K

 5,4
COEFFICIENT OF THERMAL EXPANSION 77°F - 392°F   K-1 * 10-5 8,4
COEFFICIENT OF FRICTION * 73.4°F   µ 0,18
MINIMUM SERVICE TEMPERATURE     °F -328
MAXIMUM SERVICE TEMPERATURE     °F 500
YOUNG'S MODULUS 73.4°F DIN 53457 PSI
* Coefficient of friction dry dynamic steel 16MnCr5 v=0,6m/s; p=0,05 MPa; t=5h

CHEMICAL PROPERTIES:

Filled PTFE

Resistant to almost all chemicals

Not resistant to halogenides, elemental fluorine, CF3, molten alkali metal

Foodstuff applications:         -

Contact & Workplace

PU1TEC OH, LLC.



7075 Krick Road

Walton Hills, Ohio, 44146


Phone: (440) 658-9894



Fax:     (440) 658-9896



E-mail: salesoh@pu1tec.us



Our office hours are from 8:00A.M. - 5:00P.M.

Print | Sitemap
© Johndiel Zarwasch - IONOS MyWebsite
Login

Web ViewMobile View

Logout | Edit page
